Parts List
Here's a
list of the pieces of wood you need to get from the Hobby Shop.
Qty |
Dimensions |
Purpose |
2 |
36"
x 1/2" x 1/2" |
End
Posts |
1 |
36"
x 1/2" x 1/2" |
Vertical Hips |
1 |
36"
x 1/2" x 1/4" |
Struts |
4 |
36"
x 1/2" x 1/4" |
Chords |
2 |
36"
x 3" x 1/16" |
Gussets |
3 |
36"
x 1/4" x 1/8" |
Braces |
Selecting the Best Pieces
Wood is very expensive, and you
don’t want to buy more wood than you need. You definitely don’t

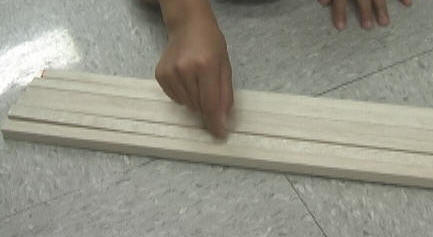

want to buy wood you can’t use. In order to tell whether wood is good
or bad, you simply lay it down on its side. Bad pieces either have
gaps between them or are bouncy. Once you’ve selected the ones you
think are good, turn them 90 degrees and repeat the test in order to
see if they are good in all directions.
Quick Weight Test
The
chart below shows how much the bridge in our video weighs. On the far
left hand side, you can see the names of each bridge member. In the
middle, you can see how much each of the pieces of wood weigh. On the
right hand side you can see how much the piece will weigh once it is
part of the bridge. You can see the total weights on the row marked
“Total”. All together, the material weighs 6.5 ounces. Once the
material becomes a bridge member, the total weight will be
approximately 5.15 ounces. The maximum our bridge is allowed to weigh
in this contest is 5.29 ounces, which is 150 grams. So we’re in
pretty good shape. However, if the bridge weighed much more, we’d
have to get lighter pieces of wood. If the bridge weighed much less,
we’d probably make the end posts heavier since they are supporting the
most weight.
Member |
Material Weight |
Member Weight |
Top Gusset |
1.1 |
1.0 |
Bottom Gusset |
0.7 |
0.7 |
Vertical Hip |
0.5 |
0.4 |
End Post |
1.1 |
1.1 |
End Post |
1.4 |
0.35 |
Bottom Chord |
0.3 |
0.3 |
Bottom Chord |
0.4 |
0.4 |
Top Chord |
0.5 |
0.45 |
Top Chord |
0.5 |
0.45 |
Total |
6.5 oz |
5.15 oz |
|
|
5.29 oz(max) |
|
